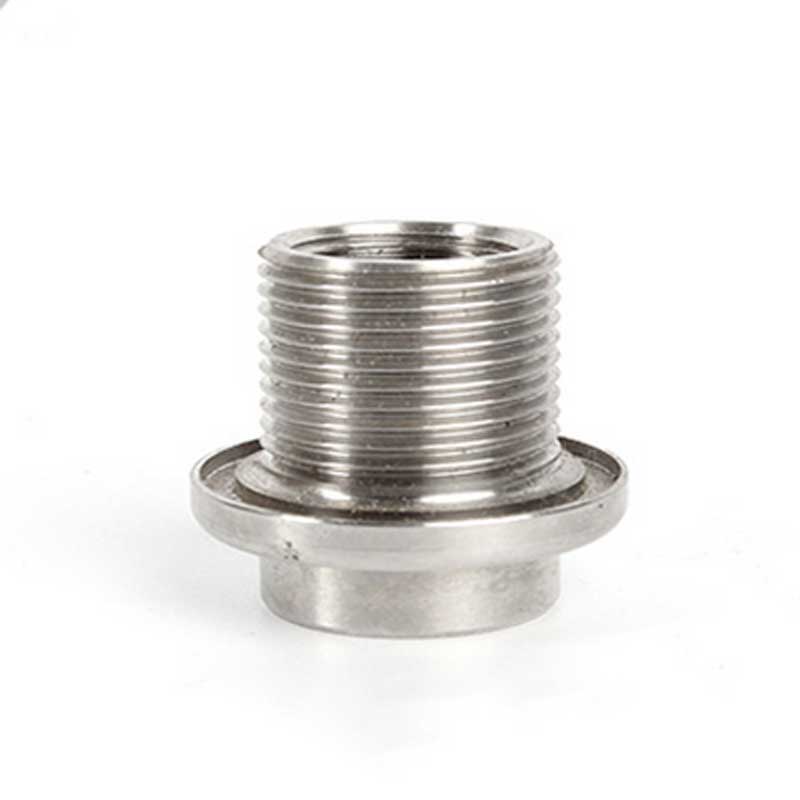

Stainless Steel Non-Standard Precise Parts Fastener Processing

We process and supply varius kinds of industrial stainless steel fasteners, you are welcome to provide drawings and get free quotation.

The thread could be customized.

customized stainless steel products

Product Size

Belowing are the size chart of type M, G, NTP, and PG thread stainless steel parts.

SS Cable Gland Sizes
Type	Thread	Part Number	Clamping Range (mm)	Thread Diameter (C1 mm)	Thread Length (C2 mm)	Biggest Diagonal (C3 mm)	Wrench Size (A/F mm)
M	M6x1.0	M6-03	2-3	6	6	11.4	10/10
M	M8x1.0	M8-05	3-4.8	8	6	13.6	12/12
M	M10x1.0	M10-06	3.5-6.2	10	6	15.9	14/14
M	M12x1.5	M12-06	3.5-6.2	12	6	17.1	14/15
M	M12x1.5	M12-08	5-8	12	8	19.6	17/18
M	M14x1.5	M14-08	5-8	14	8	19.6	17/18
M	M16x1.5	M16-08	5-8	16	9	20.7	18/19
M	M16x1.5	M16-10	6-10	16	9	24.3	20/22
M	M18x1.5	M18-10	6-10	18	9	24.3	20/22
M	M20x1.5	M20-10	6-10	20	10	26.3	22/24
M	M20x1.5	M20-12	8-12	20	10	26.3	24/24
M	M22x1.5	M22-10	6-10	22	10	28.9	22/26
M	M22x1.5	M22-14	10-14	22	10	28.9	24/26
M	M24x1.5	M24-14	10-14	24	12	31.8	26/28
M	M25x1.5	M25-10	6-10	25	12	35.4	22/30
M	M25x1.5	M25-14	10-14	25	12	35.4	26/30
M	M25x1.5	M25-18	13-18	25	12	35.4	30/32
M	M27x1.5	M27-18	13-18	27	12	35.4	32/32
M	M30x1.5	M30-18	13-18	30	12	37.6	32/34
M	M32x1.5	M32-25	18-25	32	12	44.5	38/40
M	M33x2.0	M33-25	18-25	33	12	44.5	38/40
M	M36x1.5	M36-25	18-25	36	14	44.5	40/40
M	M40x1.5	M40-32	25-32	40	15	55.3	48/50
M	M42x1.5	M42-32	25-32	42	15	55.3	48/50
M	M48x1.5	M48-32	25-32	48	15	55.3	50/52
M	M50x1.5	M50-39	32-39	50	15	65.2	58/60
M	M56x2.0	M56-39	32-39	56	15	65.2	60/60
M	M60x2.0	M60-44	36-44	60	15	77.3	65/65
M	M63x1.5	M63-44	36-44	63	15	77.3	65/70
M	M63x1.5	M63-54	45-54	63	15	83	70/75
M	M68x1.5	M68-54	45-54	68	15	83	75/75
M	M72x1.5	M72-54	45-54	72	16	88	75/80
M	M72x1.5	M72-66	55-66	72	16	99.6	80/90
M	M75x1.5	M75-66	55-66	75	18	99.6	85/90
M	M78x2.0	M78-66	55-66	78	18	99.6	90/90
M	M80x2.0	M80-66	55-66	80	18	99.6	90/90
G	G1/8	G1/8-06	3.5-6.2	9.72	6	15.9	14/14
G	G1/4	G1/4-08	4-8	13.15	8	19.6	17/18
G	G3/8	G3/8-10	6-10	16.66	9	24.3	20/22
G	G1/2	G1/2-12	8-12	20.95	10	28.9	24.26
G	G1/2	G1/2-14	10-14	20.95	10	28.9	26/26
G	G3/4	G3/4-10	6-10	26.44	12	35.4	30/32
G	G3/4	G3/4-14	10-14	26.44	12	35.4	30/32
G	G3/4	G3/4-18	13-18	26.44	12	35.4	30/32
G	G1	G1-25	18-25	33.25	14	44.5	38/40
G	G1 1/4	G1 1/4-30	25-32	41.91	15	55.3	48/50
G	G1 1/2	G1 1/2-30	25-32	47.80	15	57.5	50/52
G	G1 1/2	G1 1/2-39	32-39	47.8	15	57.5	50/52
G	G2	G2-44	37-44	59.61	16	83	65/70
G	G2 1/2	G2 1/2-54	44-54	74.18	16	94.5	75/85
G	G2 1/2	G2 1/2-66	54-66	75.18	16	99.6	85/90
G	G3	G3-77	66-77	87.88	18	110	100/100
G	G4	G4-100	95-102	113.03	20	133	122/122
NPT	NPT1/8	NPT1/8-06	3.5-6.2	10.2	6	15.9	14/14
NPT	NPT1/4	NPT1/4-08	4-8	13.61	8	19.6	17/18
NPT	NPT3/8	NPT3/8-10	6-10	17.05	9	24.3	22/22
NPT	NPT1/2	NPT1/2-12	8-12	21.22	10	28.9	24/24
NPT	NPT1/2	NPT1/2-14	10-14	21-22	10	28.9	26/26
NPT	NPT3/4	NPT3/4-10	6-10	26.56	12	35.4	32/32
NPT	NPT3/4	NPT3/4-14	10-14	26.56	12	35.4	32/32
NPT	NPT3/4	NPT3/4-18	13-18	26.56	12	35.4	32/32
NPT	NPT1	NPT1-25	18-25	33.28	14	44.5	40/40
NPT	NPT1 1/4	NPT1 1/4-32	25-32	41.98	15	55.3	50/50
NPT	NPT1 1/2	NPT1 1/2-32	25-32	48.005	16	57.5	50/52
NPT	NPT1 1/2	NPT1 1/2-39	32-39	48.050	16	57.5	50/52
NPT	NPT2	NPT2-44	37-44	60.09	18	83	70/65
NPT	NPT2 1/2	NPT2 1/2-54	44-54	72.69	18	94.5	75/85
NPT	NPT2 1/2	NPT2 1/2-66	54-66	72.69	18	99.6	85/90
NPT	NPT3	NPT3-S-77	66-77	88.60	20	110	100/100
PG	PG7	PG7-08	4-8	12.5	8	19.6	17/18
PG	PG9	PG9-08	4-8	15.2	8	19.6	18/18
PG	PG11	PG11-10	6-10	18.6	9	24.3	22/22
PG	PG13.5	PG13.5-12	7-12	20.4	10	26.3	24/24
PG	PG16	PG16-14	10-14	22.5	10	28.9	26/26
PG	PG19	PG19-14	10-14	23.9	10	31.8	26/28
PG	PG21	PG21-18	13-18	28.3	12	35.4	32/32
PG	PG25	PG25-18	13-18	29.8	12	35.4	32/32
PG	PG29	PG29-25	18-25	37	13	46.6	40/42
PG	PG36	PG36-30	25-32	47	14	57.5	50/52
PG	PG42	PG42-39	32-39	54	14	65.2	60/60
PG	PG48	PG48-44	37-44	59.3	15	83	65/70
PG	PG63	PG63-54	44-54	72	16	89	75/80
PG	PG70	PG70-66	54-66	80	18	99.6	90/90
